Setup Your Qi Resonance™ VibroSound Therapy System

PART I: REQUIRED ITEMS

• Qi Resonance Bed
• Resonant Console
• Qi Resonance Power Kit
• Aux to RCA Cable
• 5-pin XLR Connector to RCA Cable
• 2 x Banana Plugs

OPTIONAL ITEMS/UPGRADES

• Qi Coil Max/3s Yin and Yang
  • Qi Coil Power Kit
  • 2 x Qi Coil Mounting Arm Brackets
  • Audio Splitter Cable
  • Aux to RCA Cable
  • 2 x 20ft. Auxillary Cables
  • 2 x Banana Plugs
  • Magnet Testers

PART II: SETUP INSTRUCTIONS (WIRED)

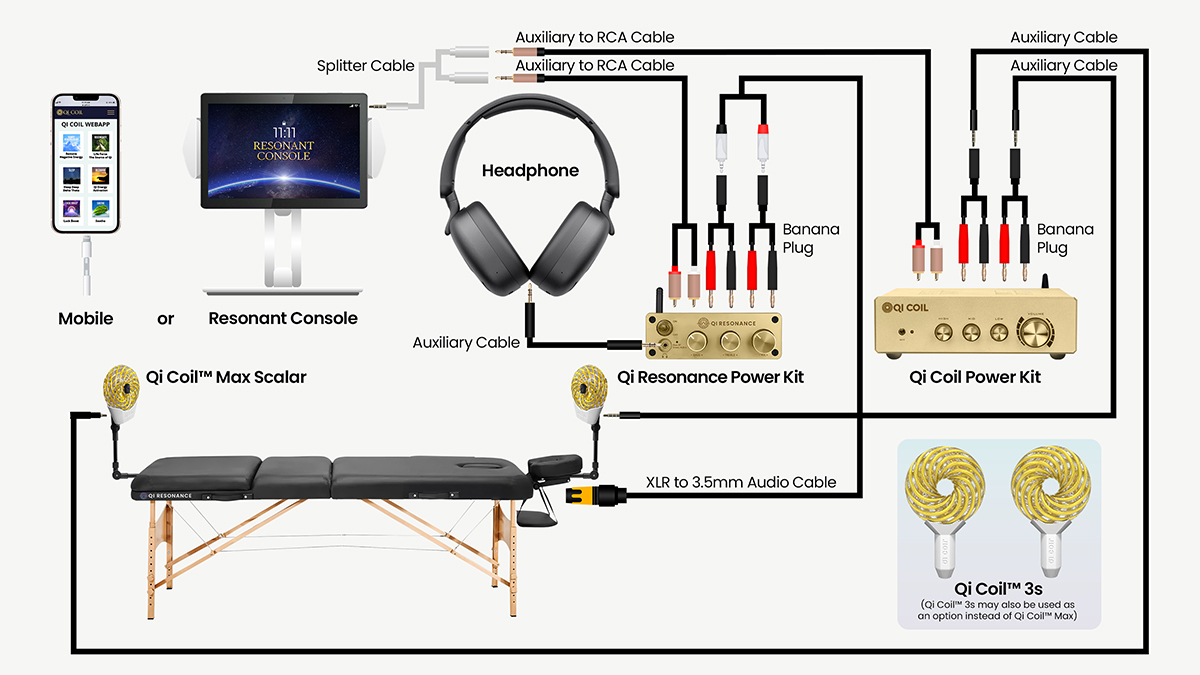

1. Connecting the Resonant Console to the Qi Resonance Power Kit and Resonant Power Kit.

1. Open the Resonant Console App on your Console.
2. Select the Luck Boost album and press Play.
3. Turn the Console’s Volume to Maximum, you should be able to hear its sounds.
4. Connect the Audio Splitter cable to the console’s headphone port.
5. Connect one end of the Audio Splitter Cable to the Audio to RCA cable to the Input Channel at the back of the Qi Resonance Power Kit.
6. Connect the other end of the Audio Splitter Cable to the Audio to RCA cable to the Input Channel at the back of the Qi Coil Power Kit.
7. Plug the power cable into the Qi Resonance Power Kit and turn it on.
8. Set the volume of the treble and bass knobs to “0” or far left
9. Set the main volume of the  Qi Resonance Power Kit to 40%.
10. Plug the power cable into the Qi Coil Power Kit and turn it on.
11. Set the volume of the  Qi Coil Power Kit to 75%.

2. Switching to Auxiliary Mode

A: Check the power light indicator on the power kit:

• If the light is blue and blinking, it is in Bluetooth mode and is not connected to a device.

B: Short press the Volume Button to switch to Auxiliary mode.
The light indicator should turn green when successfully switched.

3. Connecting the Qi Resonance Bed to the Qi Resonance Power Kit

A. Connect the 5-pin XLR Connector to the mount located at the head of the bed.

B.  Connect the RCA end to the banana plugs:

• Plug the RED audio jack’s banana plug into the Sub Binding Post.
• Plug the BLACK audio jack’s banana plug into the Main Output Binding Post next to the sub.

4. Testing the Qi Resonance Bed

1. Play the Luck Boost frequency – Your bed will play the sound and will occasionally vibrate.
2. Alternatively, you can play the Magnet Testing frequency – Your bed will vibrate.

If the bed plays the sound and vibrates, your Qi Resonance Bed is working properly.

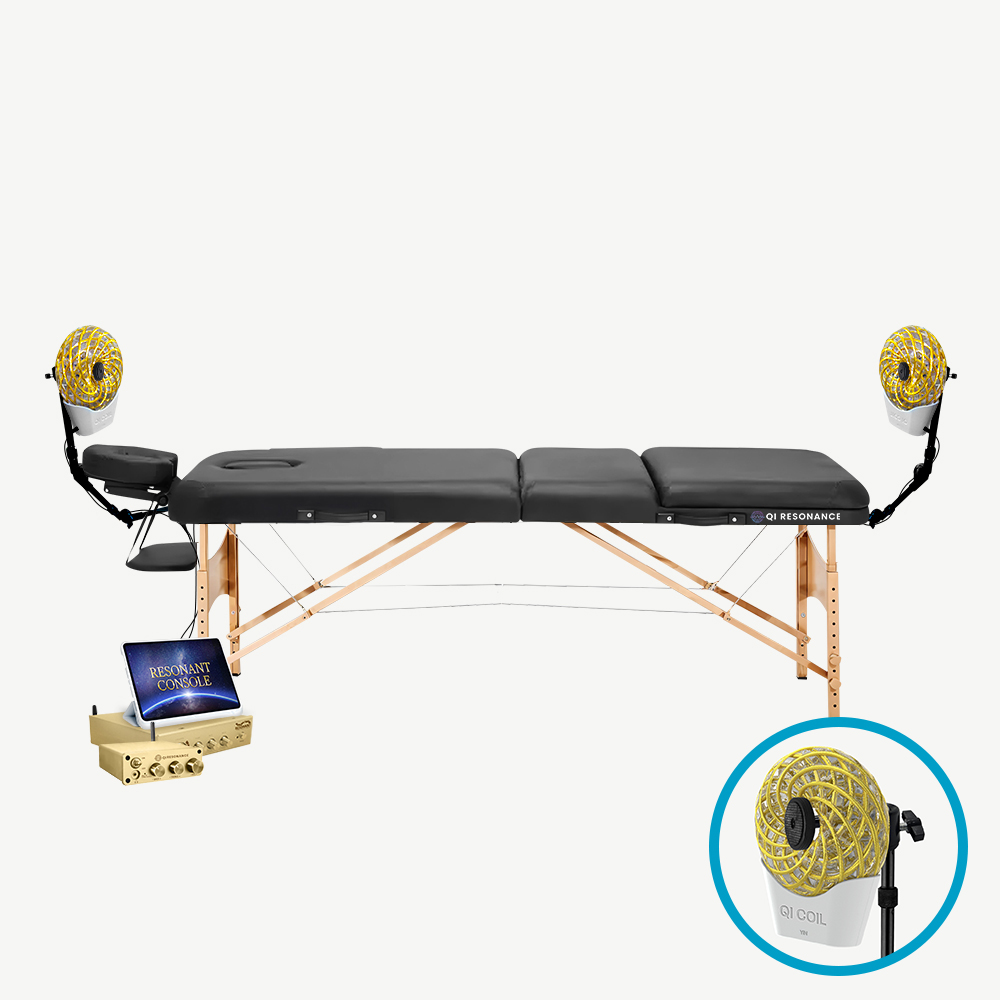

5. Attach the Qi Coils to the Qi Resonance Bed.

A. Assemble the Qi Coil Mounting Arm so all parts are attached together.

1. Make sure to loosen the clamp knot a bit so the bracket will be attached in an upright position.
2. Make sure the ball head is rotated at a 90-degree angle.
3. Attach the clamp at the end of the bed and tighten the grip.
4. Attach the Qi Coil to the Ball head adapter with the disc attachment.
5. Do the same steps to the other Qi Coil.

6. Connect the Qi Coils to the Qi Coil Power kit.

1. Connect Qi Coil to Qi Coil Power Kit with an auxiliary cable.
2. Connect the other end of the cable to the Banana Plugs
3. Plug the Red Audio Jack to the red post and the black Audio jack to the black post.
4. Do the same steps to the other Qi Coil.

7. Testing the Qi Coils

1. Play the Magnet testing frequency
2. Hold the gold magnet and get it close to the Qi Coil to test for vibrations.
3. Alternatively. Hold the small magnet in the plastic jar close to the Qi Coil to test for magnet movement.

If the magnet vibrates, then your Qi Coil is working properly. Do the testing to the other Qi Coil too.

Important Notes:

• ⚠️ Treble/Bass

Max Volume: 50%

• For normal operation, do not turn the Resonant Power Kit’s volume knob past the 3 o’clock position (75%) to prevent overheating.
• Lower frequencies will create stronger vibrations than higher frequencies.
• The vibration on magnet testing for the Qi Coils is primarily for testing purposes only.

Troubleshooting: Still Not Working?

1. Make sure that the Console/Mobile Device is turned on and connected to the power kit via Bluetooth or RCA cable.
2. Make sure the volume is turned up on the power kit and console.
3. Make sure all cables are securely connected
4. Ensure that test frequency is playing
5. Repeat Setup steps

If issues persist, contact our support team at support@qilifestore.com

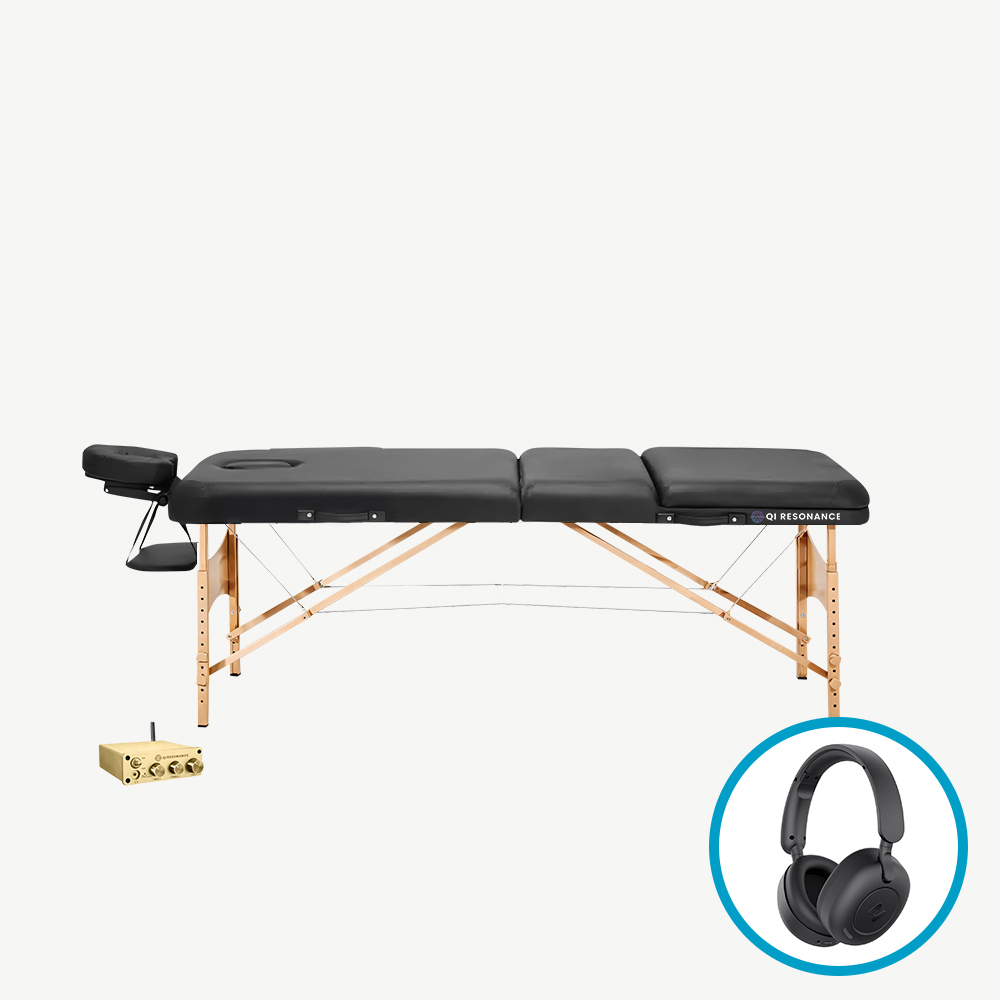

PART I: REQUIRED ITEMS

• Qi Resonance Bed
• Resonant Console
• Qi Resonance Power Kit
• Aux to RCA Cable
• 5-pin XLR Connector to RCA Cable
• 2 x Banana Plugs

OPTIONAL ITEMS/UPGRADES

• Headphone
  • If headphone is Wireless, Auxiliary Cable is needed.
  • Audio Splitter Cable

PART II: SETUP INSTRUCTIONS (WIRED)

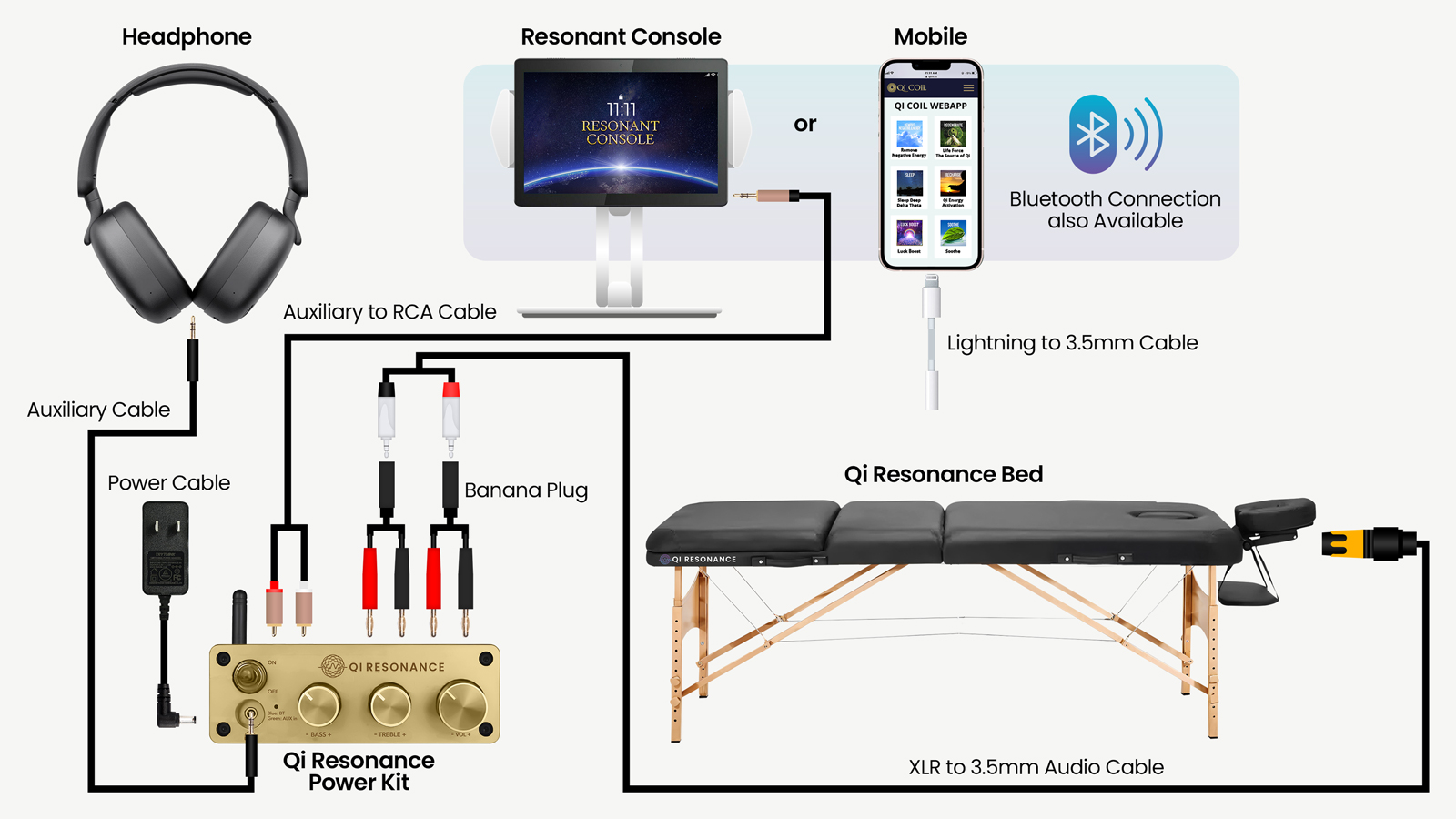

1. Connecting the Resonant Console to the Qi Resonance Power Kit and Headphones.

1. Open the Resonant Console App on your Console.
2. Select the Luck Boost album and press Play.
3. Turn the Console’s Volume to Maximum, you should be able to hear its sounds.
4. Connect the Auxiliary to RCA cable to the console’s headphone port.
5. Connect the other end of the RCA to the Input Channel at the back of the Qi Resonance Power Kit.
6. Plug the power cable into the Qi Resonance Power Kit and turn it on.
7. Set the volume of the treble and bass knobs to “0” or far left
8. Set the main volume of the  Qi Resonance Power Kit to 40%.
9. Connect the Headphones to the Qi Resonance Power Kit’s headphone port.

2. Switching to Auxiliary Mode

A: Check the power light indicator on the power kit:

• If the light is blue and blinking, it is in Bluetooth mode and is not connected to a device.

B: Short press the Volume Button to switch to Auxiliary mode.
The light indicator should turn green when successfully switched.

3. Connecting the Qi Resonance Bed to the Qi Resonance Power Kit

A. Connect the 5-pin XLR Connector to the mount located at the head of the bed.

B.  Connect the RCA end to the banana plugs:

• Plug the RED audio jack’s banana plug into the Sub Binding Post.
• Plug the BLACK audio jack’s banana plug into the Main Output Binding Post next to the sub.

4. Testing the Qi Resonance Bed and Headphones.

1. Play the Luck Boost frequency
   1. Your bed will play the sound and will occasionally vibrate.
   2. Your headphones will play the sound.

If the bed produces sound and vibrates, your Qi Resonance Bed is functioning properly. If you can hear the frequency through your headphones, the system is working correctly.

Important Notes:

• ⚠️ Treble/Bass

Max Volume: 50%

• Lower frequencies will create stronger vibrations than higher frequencies.

Troubleshooting: Still Not Working?

1. Make sure that the Console/Mobile Device is turned on and connected to the power kit via Bluetooth or RCA cable.
2. Make sure the volume is turned up on the power kit and console.
3. Make sure all cables are securely connected
4. Ensure that test frequency is playing
5. Repeat Setup steps

If issues persist, contact our support team at support@qilifestore.com

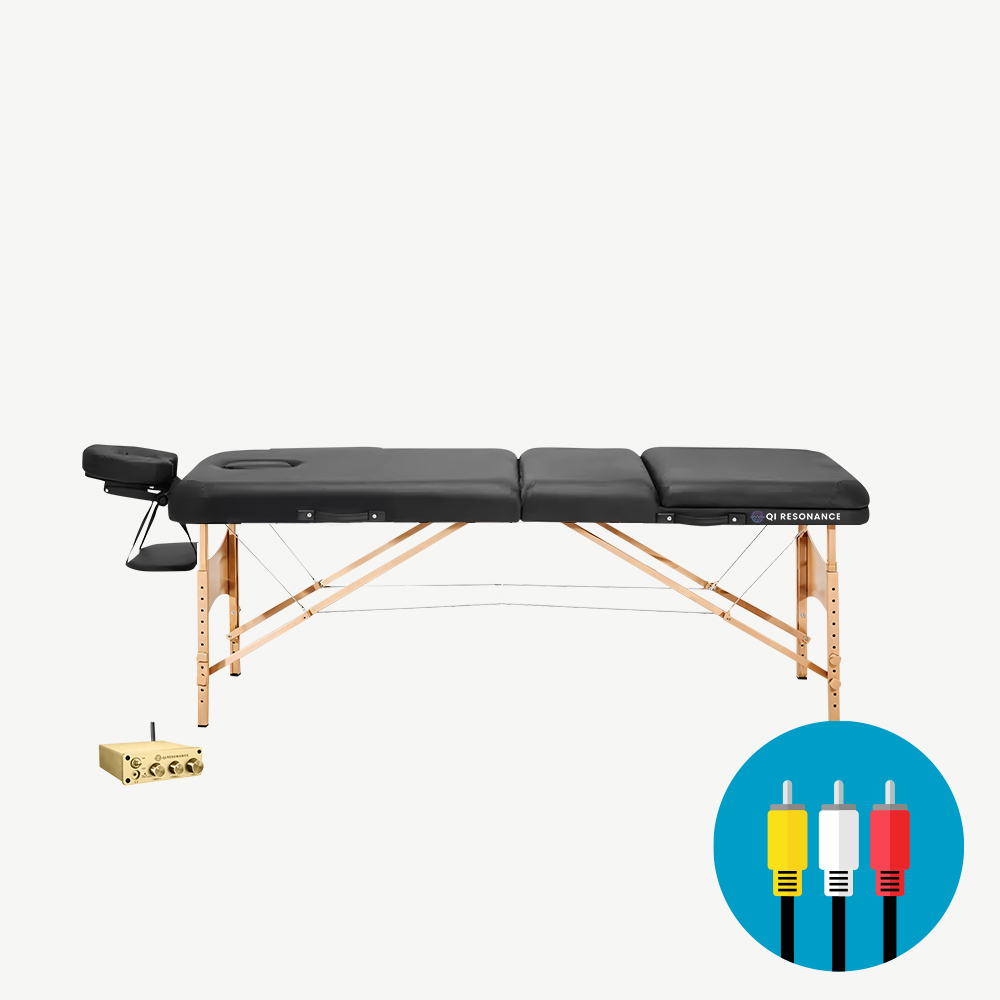

PART I: REQUIRED ITEMS

• Qi Resonance Bed
• Resonant Console
• Qi Resonance Power Kit
• Aux to RCA Cable
• 5-pin XLR to RCA Cable
• 2 x Banana Plugs

PART II: SETUP INSTRUCTIONS (WIRED)

1a. Connecting the Resonant Console to the Qi Resonance Power Kit

1. Open the Resonant Console App on your Console.
2. Select the Luck Boost album and press Play.
3. Turn the Console’s Volume to Maximum, you should be able to hear its sounds.
4. Connect the Auxiliary to RCA cable to the console’s headphone port.
5. Connect the other end of the RCA to the Input Channel at the back of the Qi Resonance Power Kit.
6. Plug the power cable into the Qi Resonance Power Kit and turn it on.
7. Set the volume of the treble and bass knobs to “0” or far left
8. Set the main volume of the  Qi Resonance Power Kit to 40%.

1b. Alternatively. Connecting your mobile device to the Qi Resonance Power Kit.

1. Open your mobile web browser and go to members.qicoil.com
2. Log in to your account.
3. Select the Luck Boost album and press Play.
4. Turn the mobile’s Volume to Maximum, you should be able to hear its sounds.
5. Connect the Auxiliary to RCA cable to the mobile’s headphone port. (You might need an adapter for iPhone and Type-C Androids)
6. Connect the other end of the RCA to the Input Channel at the back of the Qi Resonance Power Kit.
7. Plug the power cable into the Qi Resonance Power Kit and turn it on.
8. Set the volume of the treble and bass knobs to “0” or far left
9. Set the main volume of the  Qi Resonance Power Kit to 40%.

2. Switching to Auxiliary Mode

A: Check the power light indicator on the power kit:

• If the light is blue and blinking, it is in Bluetooth mode and is not connected to a device.

B: Short press the Volume Button to switch to Auxiliary mode.
The light indicator should turn green when successfully switched.

3. Connecting the Qi Resonance Bed to the Qi Resonance Power Kit

A. Connect the 5-pin – XLR Connector to the mount located at the head of the bed.
B.  Connect the RCA end to the banana plugs:

• Plug the RED audio jack’s banana plug into the Sub Binding Post.
• Plug the BLACK audio jack’s banana plug into the Main Output Binding Post next to the sub.

4. Testing the Qi Resonance Bed

1. Play the Luck Boost frequency – Your bed will play the sound and will occasionally vibrate.
2. Alternatively, you can play the Magnet Testing frequency – Your bed will vibrate.

If the bed plays the sound and vibrates, your Qi Resonance Bed is working properly.

Important Notes:

• ⚠️ Treble/Bass

Max Volume: 50%

• Lower frequencies will create stronger vibrations than higher frequencies.

Troubleshooting: Still Not Working?

1. Make sure that the Console/Mobile Device is turned on and connected to the power kit via Bluetooth or RCA cable.
2. Make sure the volume is turned up on the power kit and console.
3. Make sure all cables are securely connected
4. Ensure that test frequency is playing
5. Repeat Setup steps

If issues persist, contact our support team at support@qilifestore.com

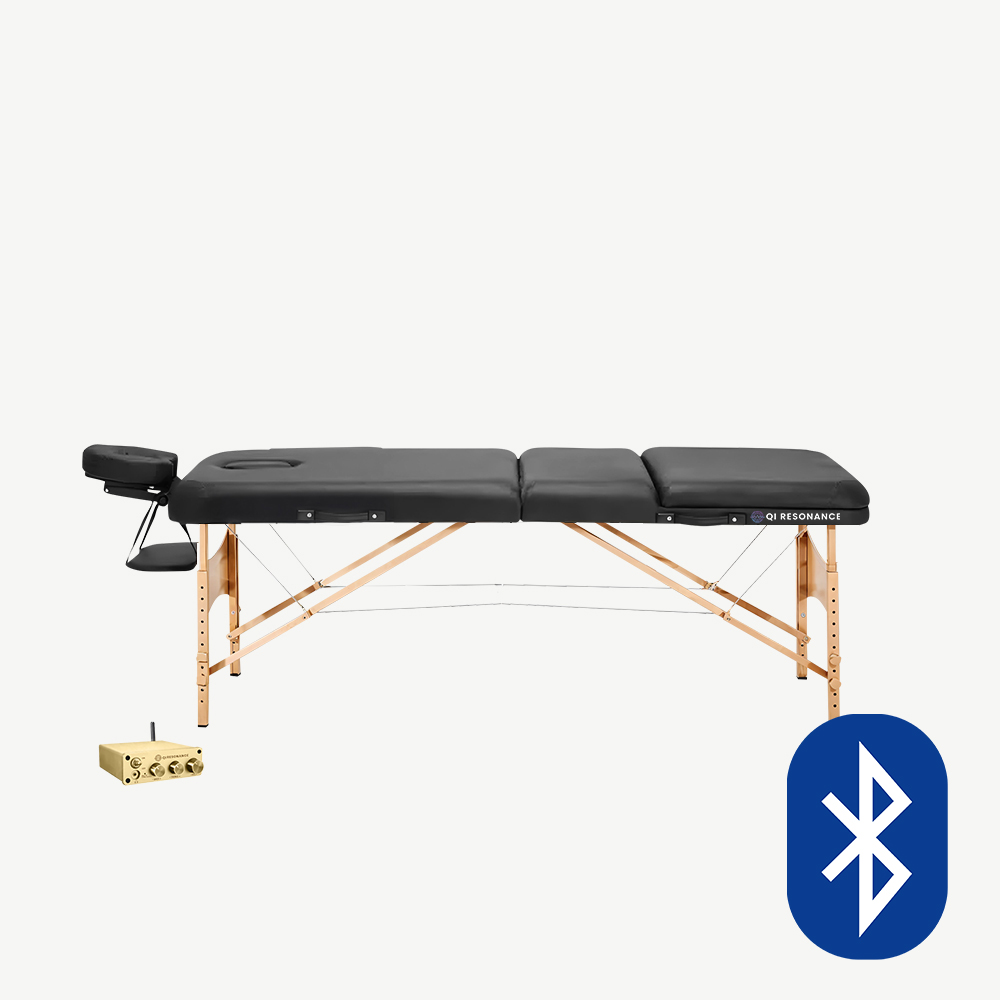

PART I: REQUIRED ITEMS

• Qi Resonance Bed
• Resonant Console
• Mobile Device (For Webapp User)
• Qi Resonance Power Kit
• Aux to RCA Cable
• 5-pin XLR to RCA Cable
• 2 x Banana Plugs

PART II: SETUP INSTRUCTIONS (BT)

1a. Connecting the Resonant Console to the Qi Resonance Power Kit

1. Open the Resonant Console App on your Console.
2. Select the Luck Boost album and press Play.
3. Turn the Console’s Volume to Maximum, you should be able to hear its sounds.
4. Plug the power cable into the Qi Resonance Power Kit and turn it on.
5. Set the volume of the treble and bass knobs to “0” or far left
6. Set main volume of the  Qi Resonance Power Kit to 40%.’

1b. Alternatively. Connecting your mobile device to the Qi Resonance Power Kit.

1. Open your mobile web browser and go to members.qicoil.com
2. Log in to your account.
3. Select the Luck Boost album and press Play.
4. Turn the mobile’s Volume to Maximum, you should be able to hear its sounds.
5. Plug the power cable into the Qi Resonance Power Kit and turn it on.
6. Set the volume of the treble and bass knobs to “0” or far left
7. Set main volume of the  Qi Resonance Power Kit to 40%.

2. Switching to Bluetooth Mode

A: Check the power light indicator on the power kit:

• If the light is green, it is in auxiliary mode.

B: Short press the Volume Button to switch to Bluetooth mode.

• If the light is blue and blinking, it is in Bluetooth mode and is not connected to a device.

1. Go to your Console’s Bluetooth settings and pair with “Qi Resonance Bed”.

3. Connecting the Qi Resonance Bed to the Qi Resonance Power Kit

A. Connect the 5-pin – XLR Connector to the mount located at the head of the bed.

B.  Connect the RCA end to the banana plugs:

• Plug the RED audio jack’s banana plug into the Sub Binding Post.
• Plug the BLACK audio jack’s banana plug into the Main Output Binding Post next to the sub.

4. Testing the Qi Resonance Bed

1. Play the Luck Boost frequency – Your bed will play the sound and will occasionally vibrate.
2. Alternatively, you can play the Magnet Testing frequency – Your bed will vibrate.

If the bed plays the sound and vibrates, your Qi Resonance Bed is working properly.

Important Notes:

• ⚠️ Treble/Bass

Max Volume: 50%

• Lower frequencies will create stronger vibrations than higher frequencies.

Troubleshooting: Still Not Working?

1. Make sure that the Console/Mobile Device is turned on and connected to the power kit via Bluetooth or RCA cable.
2. Make sure the volume is turned up on the power kit and console.
3. Make sure all cables are securely connected
4. Ensure that test frequency is playing
5. Repeat Setup steps

If issues persist, contact our support team at support@qilifestore.com
